UV Spot Coating Machine UV Spot Coating Machine
UV Spot Coating Machine
UV Spot Coating Machine

UV Spot Coating Machine

10000.00 - 10000.00 USD ($)/Set

Product Details:

  • Weight (kg) 7000 Kilograms (kg)
  • Coating Speed 5000 sh/hr mm/m
  • Coating Width 790 x 1090 Millimeter (mm)
  • Automatic Yes
  • Power Consumption 64.3 kw (WB) / 40.3 kw (UV) Decibel-milliwatt (dBm)
  • Dimension(L*W*H) 8395 x 2840 x 2010 Millimeter (mm)
  • Warranty 1 year
  • Click to View more
X

UV Spot Coating Machine

  • 10000.00 - 10000.00 USD ($)/Set
  • 1 Set

UV Spot Coating Machine

  • 8395 x 2840 x 2010 Millimeter (mm)
  • 1 year
  • 790 x 1090 Millimeter (mm)
  • 64.3 kw (WB) / 40.3 kw (UV) Decibel-milliwatt (dBm)
  • 5000 sh/hr mm/m
  • 7000 Kilograms (kg)
  • Yes

UV Spot Coating Machine

  • Keelung Port, Taiwan
  • 5 Set Per Month
  • 7-30 Months
  • Yes
  • Contact us for information regarding our sample policy
  • one 40'HQ container

Product Description

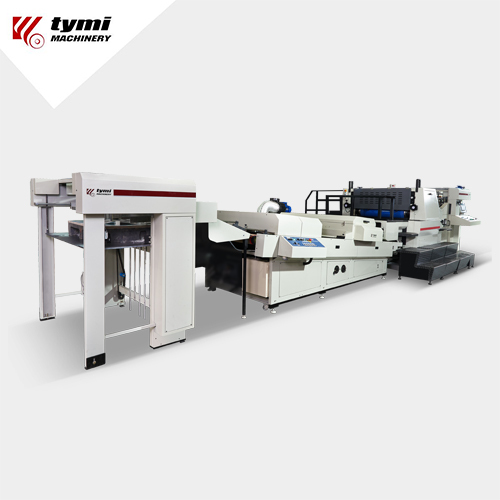

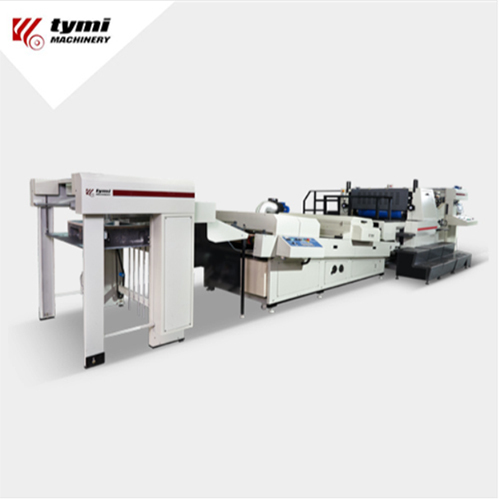

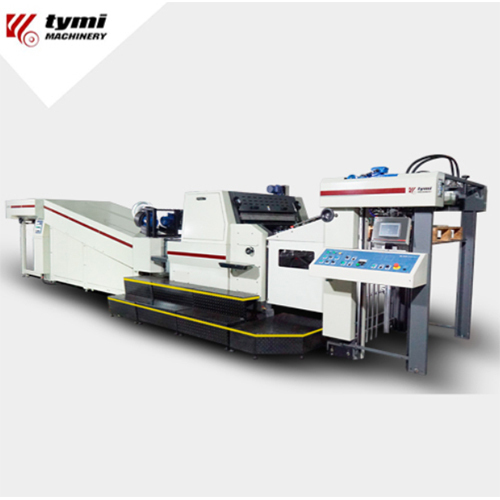

U.V Spot Coating Machine  Ustar-36

Tymi Ustar series spot U.V. coating system is introduced to replace the traditional silk-screen printing method for spot U.V. coating.  It enhances production speed and adopts less expensive U.V. resin of lower cost.  By combining the construction of offset printing press and roller coating technology, the Ustar Series is a versatile U.V. system capable for both spot and full sheet coating.

FEATURES:

  • - Equipped with large format impression cylinder for fine coating.
  • - Accurate spot coating registration for eye-catching effect.
  • - Easy change over for various substrate thickness (80-450 gsm).
  • - Ergonomic and user friendly design.
  • - Robust construction with automatic lubrication system.
  • - Machine meets all current security and safety standards, with warning signals and safety devices.
  • - Space saving, high productivity and low power consumption.


Equipment:

  • - Stream feeder
  • - Spot / full coater for UV varnish / water based (Aqueous) varnish coating
  • - UV curing system for UV
  • - IR drying system for water based
  • - Gripper delivery

Technical Specifications

Max. Sheet Size

800 x 1100 mm (Ustar-36)

920 x 1280 mm (Ustar-40)

Min. Sheet Size

340 x 406 mm

Coating area

790 x 1090 mm (Ustar-36)

910 x 1270 mm (Ustar-40)

Paper thickness

80-450gsm

Machine Speed

Up to 5000 Sheets / hour

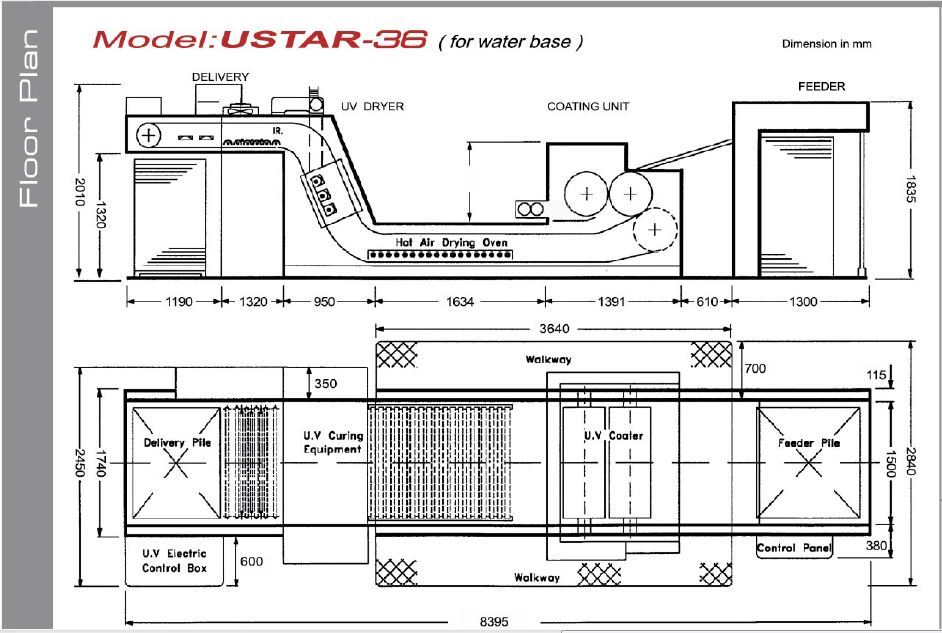

Dimension (LxWxH)

7735 x 2840 x 2010mm (WB)

8395 x 2840 x 2010mm (UV)

Total Weights

7000(WB) /7500(UV) kg

Total Power required

64.3(WB) / 40.3 (UV) kw

*Please contact us if you require different sheet size.
